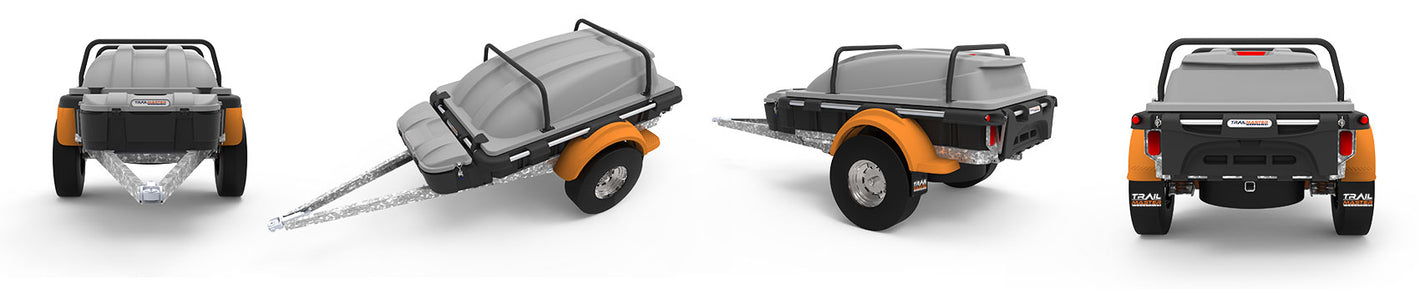

POD Trailer Technical Specifications
| Specification | Utility | Discovery | Pioneer |
|---|---|---|---|
| Overall Dimensions | 4060mm (L) x 1845mm (W) x 1300mm (H) | 4060mm (L) x 1845mm (W) x 1405mm (H) | 4260mm (L) x 1845mm (W) x 1475mm (H) |
| POD Lid Dimensions | 2100mm (L) x 1270mm (W) x 390mm (H) | 2100mm (L) x 1270mm (W) x 390mm (H) | 2100mm (L) x 1270mm (W) x 390mm (H) |
| Tub Dimensions (internal) | 2100mm (L) x 1270mm (W) x 405mm (H) | 2100mm (L) x 1270mm (W) x 405mm (H) | 2100mm (L) x 1270mm (W) x 405mm (H) |
| POD Tub Depth (internal) | 405mm (H) | 405mm (H) | 405mm (H) |
| POD Lid Height (internal) | 390mm (H) 'average' due to curved nature of the lid | 390mm (H) 'average' due to curved nature of the lid | 390mm (H) 'average' due to curved nature of the lid |
| Total POD Height (internal) | 795mm (H) total height is 'average' due to curved nature of the lid | 795mm (H) total height is 'average' due to curved nature of the lid | 795mm (H) total height is 'average' due to curved nature of the lid |
| Tare Weight (approx) | 320kg (360kg braked) | 360kg (400kg braked) | 540kg |
| Payload Capacity | 430kg (640kg braked) | 390kg (600kg braked) | 710kg |
| ATM | 750kg (1000kg braked) | 750kg (1000kg braked) | 1250kg |
| Towball Weight | 44kg | 30kg | 54kg |
POD Trailer Specifications
✓ Standard ● Optional Accessory - Not Available
Due to innovation and progressive nature of Trailmaster, these options may change from time to time.
| Features & Options | Utility | Discovery | Pioneer |
|---|---|---|---|
| Heavy Duty Fully 'hot dip' Galvanised Chassis | ✓ | ✓ | ✓ |
| Suspension - Heavy Duty 50mm RHS Beam Axle & Four Leaf Springs | ✓ | ✓ | — |
| Heavy Duty Independent Trailing Arm By TUFFRIDE With EFS Shockers (Airbag ready) | — | — | ✓ |
| 50mm Ball Coupling | ✓ | ✓ | — |
| Ozhitch Coupling | ● | ● | ✓ |
| 1700mm Drawbar | ✓ | ✓ | — |
| 1900mm Drawbar | — | — | ✓ |
| POD Lid With Dual Gas Struts | ✓ | ✓ | ✓ |
| Lockable Latches For POD LID | ✓ | ✓ | ✓ |
| Integrated Tub Anchor Points Rated to 230kg | ✓ | ✓ | ✓ |
| Removeable POD Lid Hinges | ✓ | ✓ | ✓ |
| Integrated Front Storage Box | ● | ✓ | ✓ |
| Underbody Spare Wheel Carrier Winch | — | ✓ | ✓ |
| Roof Mount Bars | ● | ✓ | ✓ |
| Jerry Can Holder | ● | ● | ✓ |
| Gas Bottle Holder | ● | ● | ✓ |
| 12v LED POD Integrated Flood Light | ● | ● | ✓ |
| Roof Mount Bars with Side Panels | ● | ● | ● |
| Cross Bars 1500mm | ● | ● | ● |
| Stone Guard Protector Complete with Padded Shield | ● | ● | ● |
| Hitch For Towbar Mounted Bicycle Carrier | ● | ● | ● |
| Tub Dividers | ● | ● | ● |
| Tub Divider & Divider Table | ● | ● | ● |
| 59 litre Water Tank with hand pump | ● | ● | — |
| 75 litre Water Tank with hand pump | — | — | ● |
| Overhead Mounting Frame w' Rear Stabilisers | ● | ● | ● |
| Stabilisers Kit (rear mounted) | ● | ● | ● |
| High Load Gas Struts | ● | ● | ● |
| Offroad Coupling by Cruisemaster | — | Only available on braked axle Discovery | ● |
| Airbag Suspension Kit | — | — | ● |
| Shock Absorber | ● | ● | — |
| 10" Hydraulic Brakes | ● | ● | — |
| 10" Electric Brakes | ● | ● | ✓ |
| Electric Brake Controller | ● | ● | ● |
| Alloy Wheels | Limited Free Upgrade | Limited Free Upgrade | ● |
| Wheels & Tyres | Utility | Discovery | Pioneer |
| 15" Black or White Steel Wheels with High Load tyres (205/65R15C) | ✓ | — | — |
| 15" Black or White Steel Wheels With All Terrain Tyres (235/75R15) | — | ✓ | — |
| 16" Black or White Steel Wheels With All Terrain Tyres (245/70R16) | (265/70R16) | — | ● | ✓ |
